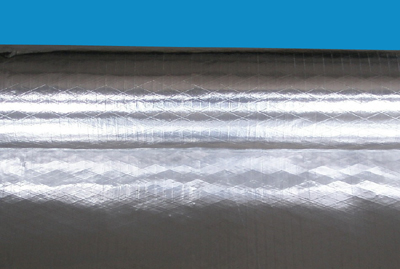

DFR-1001A DOUBLE SIDED
REFLECTIVE ALUM. FOIL INSULATION
CONSTRUCTION:
Aluminum foil: 7u / Tri-way fiberglass scrim: 8x12/100mm / Polyethylene /
Kraft paper:50gsm / Flame retrant adhesive / Aluminum foil: 7u
TYPICAL PHYSICAL PROPERTIES:
|
PROPERTIES |
UNIT |
VALUE |
TEST METHOD |
|
Basic weight |
gsm |
120 |
ASTM D646 |
|
Tensile strength: M. D.
X. D. |
N/25mm |
130
70 |
ASTM C1136 |
|
Burst strength |
N |
55 |
ASTM D774 |
|
Reflectivity of foil surface |
% |
95 |
---------- |
|
Temp. Resistance
|
-29°C
+66°C |
No change
keep soft |
ASTM C1263 |
|
Water vapor permeance |
ng/N.s |
1.15 |
ASTM E-96 |
|
Water Soak Test |
24hrs |
No delamination |
ASTM E-96 |
Width: 1.0 m, 1.2m, 1.25m
Length: 60m, 100m, 200m,2750m
Core I.D.: 3"(76mm ±1)
Based on order, special sizes are also available.
Remarks:
1. The data above are typical results and subject to change without notice.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm;
Length: Cut Roll & Log Roll ±0.3m, Jumbo Roll ±0.5%.
3. The products should be stored at room temperature and kept from wet and heat source.
4. It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, and free of grease and oil.
5. The user should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for user’s special purpose and technique.
|
