AF7105A

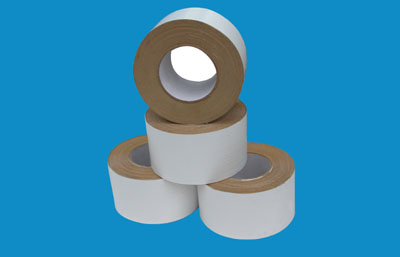

FOIL-SCRIM-KRAFT TAPE - HIGH QUALITY
PRODUCT DESCRIPTION:
Foil-Scrim-Kraft backing, combined with a transparent high performance rubber-resin adhesive, protected by an easy-release silicone release paper.
FEAUTURES:
• Foil-Scrim-Kraft backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-Scrim-Kraft Facing joints and seams sealing in HVAC ductwork application,
• Low moisture vapor transmission rate makes HaijiaTape AF7105A an excellent vapor barrier.
• Service Temperature range from -20 ~ +80 °C (+4 ~ +176 °F).

TYPICAL PHYSICAL PROPERTIES:

PROPERTIES
METRIC
ENGLISH
TEST METHOD
Foil-Scrim-Kraft Backing
120 Micron
4.8 Mil
PSTC-33
Total Thickness (Foil + Adhesive)
170 Micron
6.8 Mil
PSTC-33
Peel Adhesion
25 - 30 N/25mm
90 - 108 Oz./In.
PSTC-1
Rolling Tack (11mm ball)
£ 20 cm
£ 8 In.
PSTC-6
Holding Power
5000+ Min.
5000+ Min.
PSTC-7
Service Temperature Ranger
-20 ~ +80 °C
+4 ~ +176 °F
----------

TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE:
Cut Roll:  48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Log Roll:   1200mm x 45 / 50m                Jumbo Roll: 1200mm x 750m
STORAGE & SHELF LIFE: One year when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
SURFACE PREPARATION: It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
PRODUCT USE: It is essential that the user evaluate the HaijiaTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure onHaijiaTape product between +10~ 40°C (+50~ +105 °F).
LIMITED WARRANTY & LIMITED REMEDY: Your exclusive remedy & HaijiaTape obligation shall be, at HaijiaTape’s option, to replace or repair the HaijiaTape product or refund the purchase price of the HaijiaTape product.
