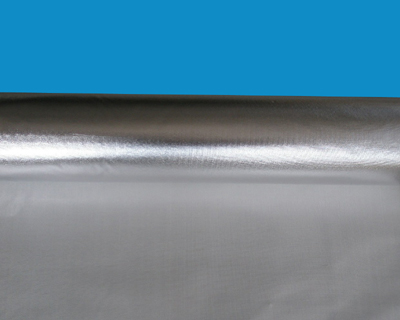

FGR-7100R

FOIL/FABRIC & TENTATIVE SPECIFICATION


FACING COMPOSITION:
Aluminum foil:7microns
Adhesive: Flame retardant
Glass fiber cloth:8X8

TYPICAL PHYSICAL PROPERTIES:

PROPERTIES
UNIT
VALUE
TEST METHOD
Basic weight
gsm
120
ASTM D646
Tensile strength: M. D.
               X. D.
N/25mm
300
250
ASTM C1136
Burst strength
N
100
ASTM D774
Reflectivity of foil surface
%
95
----------
Temp. Resistance
-29°C
+66°C
No change
 keep soft
ASTM C1263
Water vapor permeance
ng/N.s
1.15
ASTM E-96
Water Soak Test
24hrs
No delamination
----------


Width: 1.0m, 1.2m
Length: 200m,300m, 500m 1500m
Core I.D.: 3"(76mm ±1), 72mm ±1
Based on order, special sizes are also available.


Remarks:
1. The data above are typical results and subject to change without notice.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: ±0.5%.
3. The products should be stored at room temperature and kept from wet.
4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
