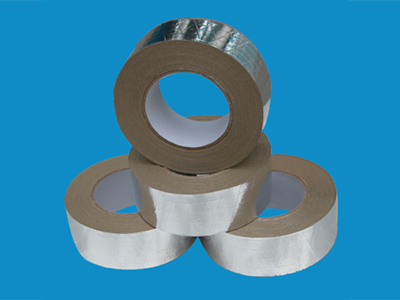

AF3005 High Quality Aluminum Foil Tape

AF3005

ALUMINUM FOIL TAPE - HIGH QUALITY
PRODUCT DESCRIPTION:
A 30 micron (1.2 mil) dead soft aluminum foil backing, combined with a high performance synthetic rubber-resin adhesive, protected by an easy-release silicone release paper.
FEAUTURES:
• Aluminum backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-Scrim-Kraft Facing joints and seams sealing in HVAC ductwork application,
• Low moisture vapor transmission rate makes HaijiaTape AF3005 an excellent vapor barrier.
• Service Temperature range from -20° to 120°C (+4° to +248°F).

TYPICAL PHYSICAL PROPERTIES:

PROPERTIES
METRIC
ENGLISH
TEST METHOD
Foil Backing
30 Micron
1.2 Mil
PSTC-33
Total Thickness (Foil + Adhesive)
70 Micron
2.8 Mil
PSTC-33
Peel Adhesion
25 N/25mm
90 Oz./In.
PSTC-1
Rolling Tack (11mm ball)
cm
£ 20
PSTC-6
Holding Power
5,000+ Min.
5,000+ Min.
PSTC-7
Service Temperature Ranger
-20 ~ +120 °C
+4 ~ +176 °F
----------

TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

PRODUCT FORM & SIZE AVAILABLE:
Cut Roll:  48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Log Roll:   1200mm x 45 / 50m                Jumbo Roll: 1200mm x 1200m
STORAGE & SHELF LIFE: One year when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
SURFACE PREPARATION: It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
PRODUCT USE: It is essential that the user evaluate the HaijiaTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on HaijiaTape product between +10~ +40°C (+50 ~ +105 °F).
LIMITED WARRANTY & LIMITED REMEDY: Your exclusive remedy & HaijiaTape obligation shall be, at HaijiaTape’s option, to replace or repair the HaijiaTape product or refund the purchase price of the HaijiaTape product.
